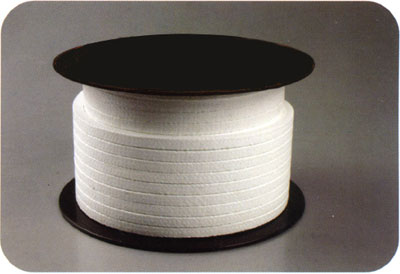

PTFE Filament Packing
Product number:RGS P103
Quick Overview: Braided from sintered and high stretched PTFE multifilament yarns. Within PTFE impregnation. Good resistance to compression and extrusion, high structural and cross-sectional density.
Send Inquiry
PDF DownLoad
Product Description
P103R PTFE Filament packing with Silicone Core
High red elastic silicone rubber core can absorb vibration to control leakage.
PTFE Filament Packing
Item no.: RGSP103
* Clean, non-contaminating and graphite free
* Long maintenance free service life
* Minimal shaft wear and leakage
* Superior performance
* Lower frictional factor
Typical Application
* Universal packing suitable for valves, pumps and agitators in most mediums
* Especially suited for high pressure valves, plunger pumps, agitators, mixer etc. And where contamination is not permitted.
Technical Data
|
Material |
100% Filament PTFE yarn (with Silicone, Silicone core) |
|
|
Temperature Range |
-150 up to +260 oC |
|
|
Process |
Rotating |
20 bar |
|
Reciprocating |
150 bar |
|
|
Static |
250 bar |
|
|
Shaft Speed |
10 m/s |
|
|
PH |
0~14 |
|
|
Density |
1.75 g/cm3 |
|
