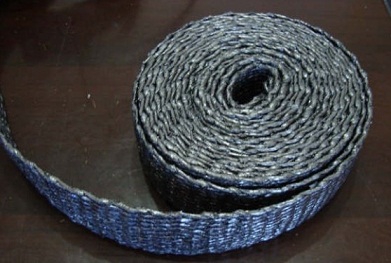

Braided Graphite Tape

The braided expanded graphite tape knitted with an innovative expanded pure graphite yarn. The shape structure compacting braided with high strength, usually used as the packing and gasket. With metallic wire reinforced is available.

Typical Application
As a endless gasket strip for vessels and flanges of extreme uneven, high temperature and high pressure. Used in Heat exchangers, boiler, pipes, doors, covers, etc.

Prime Features
* Easy handling and installation to every size
* Used as universal gasket during revisions
* Save money and time
* Can be with adhesive on one side.

Specification
Temperature: -240 up to +550 deg.C
PH: 0~14
Max. Pressure: 100 bar ( without wire reinforcement)
200 bar (with wire reinforcement).
