Basic Style Kammprofile Gasket

Basic Style Kammprofile Gasket

Product number:RGS700

Quick Overview: RGS offers complete range of moulds for manufacture serrated metal gaskets. RGS not only provide the complete kammprofile gasket, also metal core only. The range of styles including with and without rings, with integral and loose outer rings. Kammprofile Gasket is known as LP1 Gaskets and Cammprofile.

Send Inquiry

PDF DownLoad

Product Description

RGS Kammprofile Gaskets are composite gaskets, which utilizes a serrated metal core with a soft material. The metal core is machined on each contact face with concentric serrations which provide high pressure areas, ensuring that the soft coating flows into any imperfections in the flange even at relatively low bolt loads. The result is a gasket which combines the benefits of soft cut materials with the advantages or sealing integrity associated with metallic gaskets.

Expanded graphite is the most common facing material used for Kammprofile Gaskets. However, other materials can be used, such as PTFE for chemically aggressive duties or mica for high temperature duties, etc.

Types of Kammprofile Gaskets

Basic style kammprofile gaskets
Item no.: RGS700

* This type kammprofile gasket for tongue and groove flanges
* Gasket without inner and outer rings
* Concentrically grooved profile on both sizes and covered with soft material layers

Kammprofile gasket with integral outer ring
Item no.: RGS710

* Kammprofile gasket with machined centering ring
* The metallic core is made with a concentrically grooved profile on both sides and a machined centering ring
* Gasket with soft sealing layer both sealing surface

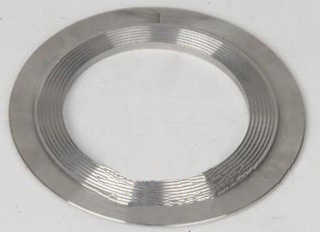

Kammprofile gasket with loose outer ring
Item no.: RGS720

* The metallic core is made with concentrically grooved profiling on both sides
* A notch is turned on the outer circumference of the core in which a loose centering ring
* With soft sealing layer in both sides

Material of construction
Carbon steel, stainless steel, 321, 347, monel 400, inconel, incoloy, nickel, titanium, hastelloy, copper
Coating materials: Graphite, PTFE etc.

Products are manufactured in accordance with all relevant gasket standards to suit flange designations: ASME B16.5, BS1560, ASME B16.47, BS EN1092, DIN, JIS and NF.
